Henan Waste Heat Boiler Factory Flue Gas Technical Parameters

 Q=7.7t/h waste heat steam boiler technical parameters

1. Main technical parameters:

• Rated evaporation: Q=7.7t/h (calculated by the boiler factory)
• Superheated steam pressure: P=2.45MPa
• Number of units: 2 units
• Superheated steam temperature: t=400℃
• Design feed water temperature: t=105℃
• Average flue gas temperature at boiler inlet: t=900°C
• Boiler exhaust temperature: t≤180℃
• Boiler inlet flue gas parameters:
• Flue gas volume: 21000Nm³/h
• Flue gas temperature: 850~950℃
• Flue gas composition: CO2 4.32% H2O 17.04% O2 8% N2 70.57% SO2 0.07%

2. Scope of supply: waste heat boiler body, supporting platforms, (both sides) escalators, supporting instruments, control cabinets, supporting boiler soot blowers, etc.

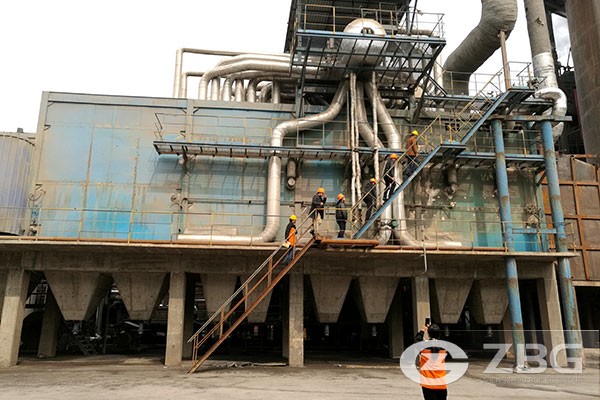

waste-heat-steam-boiler

3. Technical data set: general equipment diagram, pipeline component diagram, equipment basic diagram, electrical schematic diagram, auxiliary equipment diagram.

4. Supplement: The boiler inlet and outlet flue gas valves are provided by the calciner, and the rest are provided by the boiler manufacturer.

Q=15.4t/h waste heat steam boiler technical parameters

1. Main technical parameters:

• Rated evaporation: Q=15.4t/h (accounted by boiler factory)
• Superheated steam pressure: P=2.45MPa
• Superheated steam temperature: t=400℃
• Design feed water temperature: t=105℃
• Average flue gas temperature at boiler inlet: t=900°C
• Boiler exhaust temperature: t≤180℃
• Boiler inlet flue gas parameters:
• Flue gas volume: 42000Nm³/h
• Flue gas temperature: 850~950℃
• Flue gas composition: CO2 4.32% H2O 17.04% O2 8% N2 70.57% SO2 0.07%

2. Scope of supply: waste heat boiler body, supporting platform escalator, supporting instrument, control cabinet, supporting boiler soot blower, etc.

3. Technical information: general equipment diagram, pipeline component diagram, equipment foundation diagram, electrical schematic diagram, auxiliary equipment diagram.

4. Supplement: The waste heat boiler inlet and outlet flue gas valves are provided by the calciner, and the boiler manufacturers are responsible for the rest.
