SZL14MW Coal-fired Hot Water Boiler Technical Parameters And Classic Cases
2023-05-04 08:41:39SZL14MW Coal-fired Hot Water Boiler Technical Parameters
| serial number | name | Specifications | quantity |
| 1 | the host | SZL14 | 1 set (set) |
| 2 | Economizer | Total number: 10×14 Total heating area: 413㎡ |
1 set (set) |
| 3 | Instrument valve | Supporting 14MW boiler | 1 set (set) |
| 4 | Speed box | GL-20P | 1 set (set) |
| 5 | Induced fan | GY20-15 Right 180° | 1 set (set) |
| 6 | blower | G4-73 NO.11D Right 0° | 1 set (set) |
| 7 | electric pump | DG25-30×6 | 2 sets (sets) |
| 8 | Electric control cabinet | one type | 1 set (set) |
| 9 | Coal loader | vertical lift | 1 set (set) |
| 10 | Sub-catchment |
|
1 set (set) |
| 11 | smoke duct | Supporting 20 tons boiler | 1 set (set) |
| 12 | platform escalator | Supporting 20 tons boiler | 1 set (set) |
| 13 | Slag machine | Scraper | 1 set (set) |
| 14 | water treatment | Water tank, dosing device | 1 set (set) |
| 15 | Flue gas treatment | Dust removal, desulfurization, denitrification | 1 set (set) |
| 16 | chimney | Φ1112 25m | 1 set (set) |
| 17 | Sample cooler | Supporting 20 tons boiler | 1 set (set) |
| 18 | Periodic sewage expansion container | Supporting 20 tons boiler | 1 set (set) |
| 19 | Continuous blowdown expander | Supporting 20 tons boiler | 1 set (set) |
| 20 | thermal deaerator | Supporting 20 tons boiler | 1 set (set) |
| twenty one | silencer | Supporting 20 tons boiler | 1 set (set) |
| twenty two | Lead, Blower Electric Actuator |
Supporting 20 tons boiler | 1 set (set) |
Zhengzhou Airport 20-ton chain boiler project
- Project Address: Zhengzhou, Henan
- Purchase equipment: 20 tons chain grate hot water boiler
- Field of application: Heating for thermal power companies
The history of chain grate boilers is very long. Although Zhengzhou Boiler's research and development and design of chain grate boilers is not as long as the century-old history of this type of boiler, it is far ahead of domestic counterparts. Central heating is one of the main uses of chain grate hot water boilers. This time, a heating company purchased the 20-ton chain furnace equipment, and its project site is in the Zhengzhou Airport area.

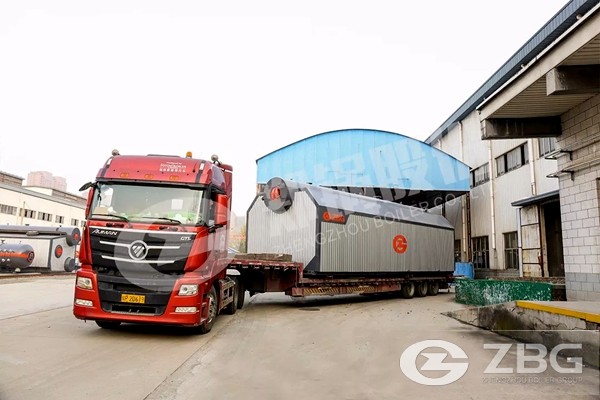

SZL14MW Coal-fired Hot Water Boiler
Henan University 20-ton chain grate boiler project
- Project Address: Kaifeng, Henan
- Purchased equipment: 2 sets of 20-ton bulk GEF high-efficiency and energy-saving chain grate hot water boilers
- Application field: school heating
In order to meet the daily hot water needs of more than 30,000 students in the school, Henan University purchased two 20-ton bulk GEF high-efficiency energy-saving chain grate boilers in our company. The chain grate boilers are widely used in industrial heating, electricity, The boiler form for public heating, the 20-ton chain grate hot water boiler is used for heat supply, which fully meets the heating needs of teachers and students in the river, and provides great convenience for their normal work and student life.
