45 Ton Biomass Corner Tube Boiler Costa Rica
Mode:
ZG-45/3.82/450-T
Capacity:
45 tons
Application:
Power generation

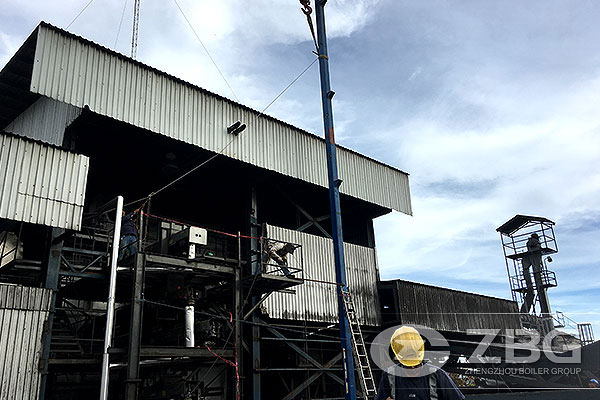

In 2014, we have one set of 45 ton corner tube type biomass boiler exported to Costa Rica, which was manufactured strictly in accordance with ASME standards.

Biomass corner tube boiler main parameters

Rated steam capacity: 45t/h
Rated steam pressure: 3.82Mpa
Rated steam temperature: 450℃
Feeding water temperature: 104℃
Design thermal efficiency: 87.5%
Fuel consumption: 10807Kg/h
Combustion type: layer combustion
Boiler safety operation range: 70%~100%
The designed fuel: palm kernel shell and bagasse

Corner Tube Biomass Fired  Boiler Benefits

The boiler adopts self-supporting membrane water wall structure, which is national patent technology.
Using clean combustion technology to burn the fuel peanut shell for power generation.
Based on ZBG’s experience of biomass boiler and corner tube boiler, the biomass corner tube boiler is designed to make itself optimized to a variety of biomass fuels with high efficiency.
The fuel palm kernel shell and bagasse or other fuels burn, the ash and slag can be used as the agricultural fertilizer directly. It is efficient and environment friendly.
