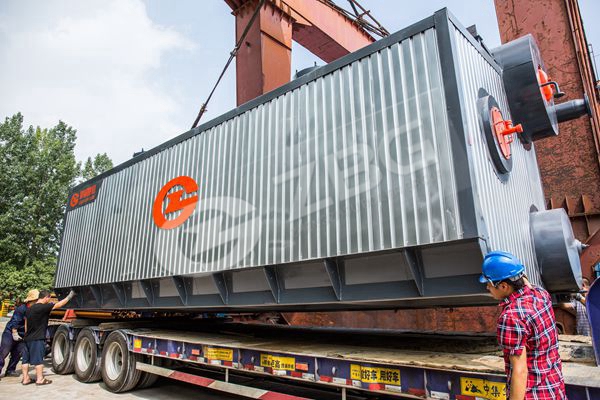

Three types of ZBG Group 15 t/h Capacity Water Tube Boiler

 This user has requirement of water tube boiler for Their 30Klpd capacity Distillery plant located near kanpur (up) with following specification .Our Water Tube Boilers can be mainly divided into D type, O type, and π type.For 78 years we have established good reputation for reliable and proven performance is continually enhanced by incorporating the latest advanced technologies into our design. We provide designs specific to clients, requirements that meet all ASME, CE and ISO certificate.

15 tph Capacity Water Tube Boiler

• Type. WT(AFBC)
• Capacity. Steam Gen.15TPH
• Working Pressure. 10.5Kg Per/cm2
• Fuel. Rice husk/ coal/methane gas

D TYPE PACKAGE WATER TUBE BOILER

D type packaged steam boiler is designed with a capacity up to 65 t/h. Two-drum D type water tube boiler, packaged boiler. The ZG Boiler D style boiler design is a perfect fit in a safe, reliable, cost-efficient boiler for green thinking enterprises.

• Capacity: 4 t/h~100 t/h, 14 mw-70 mw
• Pressure: 1.25~3.82MPa
• Seam temperature: 184 ～ 450 ℃
• Fuel: dual fuel boiler, light oil, heavy oil, natural gas, residue oil, LPG, etc.

O TYPE WATER TUBE BOILER

O type steam or hot water boiler is designed with the flexibility to meet unique project requirements for shop assembled boiler.

• ---Capacity: 4 t/h~30 t/h
• ---Pressure: 0.7~2.5MPa
• ---Seam temperature: 171 ～ 400 ℃
• ---Fuel: coal, anthracite coal, bituminous coal, biomass pellet, wood pellet, rice husk, straw, bagasse, palm kernel shell, coal mixed with biomass.

Π TYPE WATER TUBE BOILER FEATURE

Π type water tube boiler is usually designed with large capacity for small and medium enterprises self power supply, thermal power plant, building heating.

• ---Capacity: 10 t/h~410 t/h
• ---Pressure: 3.82~13.7MPa
• ---Seam temperature: 450～540℃
• ---Fuel: coal, anthracite coal, bituminous coal, biomass pellet, wood pellet, rice husk, straw, bagasse, palm kernel shell, coal mixed with biomass.
