Fire tube boiler special report
There are two main boiler types that you can choose from for your specific application: firetube boiler and watertube boilers. And deciding which of the two will best fit your process need is fairly important. There are some specifications to consider: ...
| Types | Fire Tube Boiler | Water Tube Boiler |
|---|---|---|

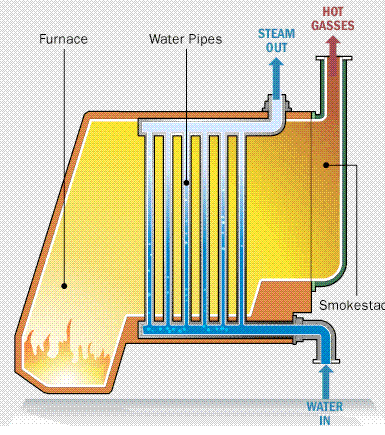

| Structure |  |
 |
| Principle | Flue gas travels through the tubes | Water travels through tubes |
| Capacity | Small capacity 1 ton/hr ~20ton/hr | Larger capacity 6ton/hr ~ 280ton/hr |
| Pressure | Low pressure applications up to 1.6MPa | Higher pressure applications up to 9.8MPa |
| Cost | Cheaper than water tube boiler | Relatively expensive |
| Parts | Various parts are not so easily to accessible for cleaning, repair and inspection | Various parts are more accessible |
| Application | Suitable for industries which don't need high pressure, like textile, food plant, heating. | Automatic choice for large boilers, i.e. power boilers |
| Installation | Package boiler, complete in all respects and little site work involved | Generally built a site, require longer installation and commissioning period |
If you are interested in Fire tube boiler or Water tube boiler, please contact us !
Need Steam Boiler or Hot Water Boiler?

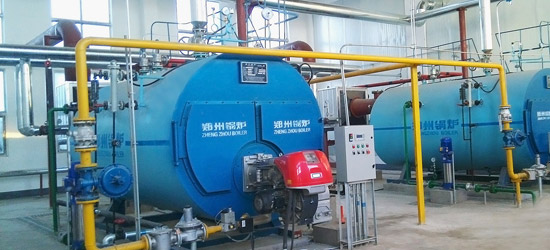

Fire tube steam boiler
If you need the boiler for industrial steam applications, like food processing, textile industry, paper-making, and other industries that steam is required in their processing, then you should choose steam boiler.
Want to know more about steam boiler, please contact us
Fire tube hot water boiler
If you need the boiler for hot water process, like heating, process heat, dry cleaning, laundry, hot water supply, and other industries that hot water is required in their processing, then you should choose hot water boiler.
Want to get more details about hot water boiler, please contact online service
Which fuel do you prefer, gas, oil, coal, or biomass?
In the market, Fire tube boiler can use gas, oil, coal, biomass or co-firing. Choosing an appropriate boiler can maximize economic benefits and save your money. If you confirm the boiler fuel, we can calculate fuel consumption and costs.
Gas Fired Boilers -- Fire tube boiler
Capacity: 1 ton/hr to 20 ton/hr
Design pressure: 0.7MPa to 1.6MPa
Fuel: Industrial Gas, LPG, Natural Gas, Furnace Gas, Pilot Gas, Dual Fuel(Gas & Oil)
Fuel cost: Please refer to local fuel prices and fuel consumption comprehensive calculation.
| Types | Capcity | Pressure | Fuel | ||
|---|---|---|---|---|---|
| Fuel type | Consumption | Heat Value | |||
| WNS1-1.25 | 1 ton steam per hour | 1.25Mpa | Natural gas | 77 m3/hr | 8400Kcal/Nm3 |
Note: Only for reference. If you want to know more about the boiler, please CLICK the follow button !

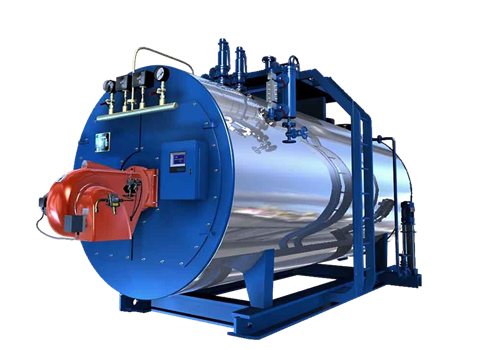

Oil Fired Boilers -- Fire tube boiler
Capacity: 1 ton/hr to 20 ton/hr
Design pressure: 0.7MPa to 1.6MPa
Fuel: Diesel, Kerosene, Furnace Oil, Fuel Oil, LDO, Light Oil Diesel, Dual Fuel(Gas and Oil)
Fuel cost: Please refer to local fuel prices and fuel consumption comprehensive calculation.
| Types | Capcity | Pressure | Fuel | ||
|---|---|---|---|---|---|
| Fuel type | Consumption | Heat Value | |||
| WNS1-1.25 | 1 ton steam per hour | 1.25Mpa | diesel oil | 66 Kg/hr | 10245 Kcal/Nm4 |
Note: Only for reference. If you want to know more about the boiler, please CLICK the follow button !

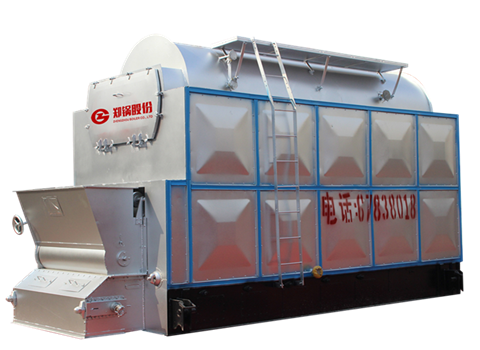

Biomass Fired Boilers -- Fire tube boiler
Capacity: 2 ton/hr to 10 ton/hr
Design pressure: up to 1.6MPa
Fuel: Bituminous Coal, Anthracite Coal, Lignite Coal, Lean Coal, Co-firing(biomass and coal)
Fuel cost: Please refer to local fuel prices and fuel consumption comprehensive calculation.
Coal Fired Boilers -- Fire tube boiler
Capacity: 2 ton/hr to 10 ton/hr
Design pressure: up to 1.6MPa
Fuel: Biomass Pellet, Bagasse, Rice Husk, Wood Chips, Palm Oil Kernel, Straw, Sawdust
Fuel cost: Please refer to local fuel prices and fuel consumption comprehensive calculation.
| Types | Capcity | Pressure | Fuel | ||
|---|---|---|---|---|---|
| Fuel type | Consumption | Heat Value | |||
| DZL1-1.25 | 2 ton steam per hour | 1.25Mpa | coal | 411 Kg/hr | 4000 Kcal |
Note: Only for reference. If you want to know more about the boiler, please CLICK the follow button !
Who choose fire tube boiler?

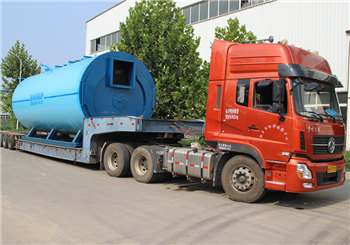

3 ton fire tube steam boiler in Indonesia
Equipment:WNS3-1.0-Q
Company: Seafood products processing
Application Site: Indonesia

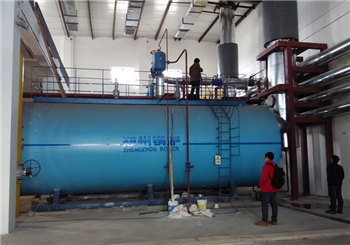

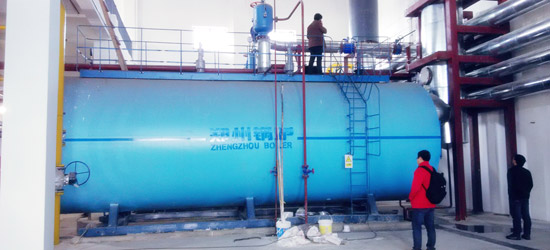

14MW hot water boiler for heating
Project: WNS14-1.0/95/70-Q gas hot water boiler
Application area: heating supply

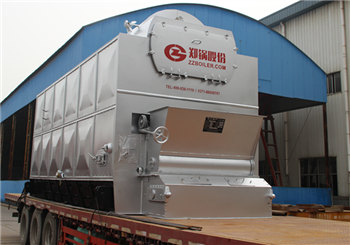

4 Ton Biomass Boiler Exported to Vietnam
Project: DZL4-1.25-T packaged biomass steam boiler
Application area: paper mill
Project site: Bắc Ninh, Vietnam

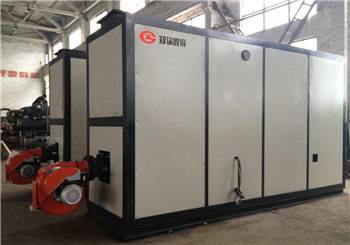

8 Ton Vacuum Hot Water Boilers for Heating
Project: two sets of 8 ton gas fired vacuum hot water boiler
Application area: heating supply
What our clients say
Why Choose Our Company
70 year industrial boiler experience: ZG Boiler found in 1945, now products are gas & oil fired boiler, coal fied boiler, biomass fired boiler, power plant boiler and waste heat boiler, in recent years, annual sales of 1 billion yuan.
9000+ ton/year industrial boiler: Every year,ZG Boiler produces 9000+ ton fire tube boilers and water tube boilers with coal, biomass, gas and oil.
50+ Countries: Our products have exported to more than 50 countries,
300+ Industries: All types of boilers are widely used in textile, paper, food, chemical, oil, hospital, etc.
What Service We Supply
Pre-sale Service: Providing clients with the comprehensive feasible high quality and standard solution in order to constantly meet your needs, and finally achieve satisfactory results.
Installation & Parts: On-site installation guide and training are provided by experienced engineers; Adequate consumable parts are freely provided.
After-sale service: 12 months after installation quality warranty
how to contact us
For customers, service support and product quality are equally important. We are equipped with a global service network station and skilled engineer team to solve customers' problems at any time. We implement the "within 72-hours" rapid handling mechanism. No delaying in customers' production is our duty, and creating profits for customers is our greatest rewards.
