12 Ton Per Hour Coal Fired Steam Boiler Inquiry

Hello Anne,

Good day! I was just talking to you in your website messenger, my name is Jeff. We are an EPS moulder in Manila, Philippines. We are currently looking for a quality boiler to support us for our expansion

Can you quote us for a new boiler? We will be at Zhengzhou this Nov 30 and Dec 1 to visit boiler factories. Can we meet and visit your factory?

Here are some of our requirements

- output of 12tons/hour

- fuel is a mix of rice husk and coal

- pls include wet scrubber and other important accessories

- delivery

- CIF price

thank you!

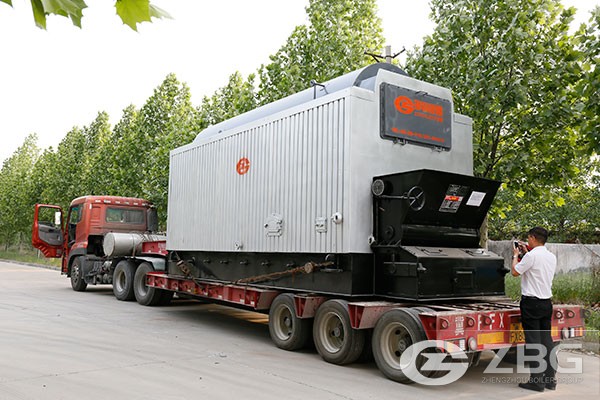

12 Tons/hour Coal and Rice Husk Steam Boiler

Dear Jeff,

Hello, I am glad to receive your consultation. The 12-ton/hour coal fired steam boiler and the biomass steam boiler have the same furnace type, and they are all quick-assembled boilers and so on. ZBG produces coal-fired boilers, biomass boilers, coal and biomass fuel boilers.

Technical parameters of 12 ton coal fired steam boiler

Capacity: 12 tons per hour

Rated steam pressure: 1.25MPa

Rated steam temperature: 194℃

Water supply temperature: 60℃

Thermal efficiency: 78%

Applicable fuel: bituminous coal, anthracite, blue charcoal mixed burning

Application scope: thermal power plant power generation, production gas, central heating

Furnace type: SZL12-1.25-AⅡ, DZL12-1.25-AⅡ, SHL12-1.25-AⅡ, SHW12-1.25-AⅡ

Price of 12 ton coal-fired steam boiler

1. Affected by furnace type

From the above, we can see that there are 4 types of 12-ton coal-fired steam boilers, and this is only the furnace type with a pressure of 1.25MPa. The price of the boiler body is also different for different furnace types. The design of each furnace type has its focus, and the user must choose the furnace type that suits him when choosing.

2. Affected by configuration

The configuration of the boiler is also divided into high, medium and low. Which configuration to use depends on your own industry. If the pressure required by the industry is high, then the configuration must also keep up. The price of boiler desulfurization, denitrification and dust removal should be selected according to a certain furnace type to see which desulfurization and de-sale method is suitable.
