132 m2 Sintering Machine Waste Heat Power Generation Boiler Data Parameters

2023-03-23 08:36:11

Sintering machine waste heat power generation boilers are mainly used in iron and steel plants. The calculation of the tonnage of sintering machine waste heat boilers requires not only flue gas temperature and flue gas volume, but also cooling area and flue gas composition reports. The more information we provide, the more our technology The better the team can meet the actual needs of users.

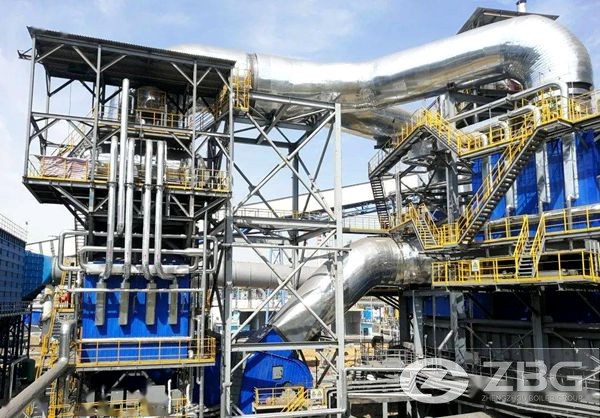

Waste Heat Power Generation Boiler

Waste Heat Power Generation Boiler

1. Sintering machine operation data table:

serial number project unit Remark
actual value Remark
1 quantity tower 1
2 Effective area of ​​sintering machine m2  132
3 Utilization factor t/m2.h 1.37
4 Host operating days d  330
5 Annual output of sinter 104t/a  143
6 Mixing ore consumption kg/t ore 914
7 Quicklime consumption kg/t ore  72
8 Coke powder consumption kg/t ore  46
9 Sintering machine speed m/min  1.8
10 Sintered layer thickness mm 650
11 Blast furnace gas consumption Nm3/h  6500~7000
12 Calorific value of blast furnace gas kJ/Nm3 3500~4000
13 Air volume of main exhaust fan m3/min 13500
14 Air pressure of main exhaust fan Pa -15500
15 Main exhaust fan power kW  5000
16 main exhaust fan Actual running current A  270 10kV Shaft power~

2. Operation data table of supporting ring cooler

serial number project unit Remark
 design value Remark
1 quantity tower  1
2 cooling area m2  170
3 Ambient Cooler Inlet Material temperature 350~400
4 Ring cooler ore handling capacity (Sinter cake output) t/h  320~450
5 Number of ring cooling fans tower  5
6 Ring cooling fan power k  132
7 Ring cooling fan running tower  4~5
8 Ring cooling fan operating current A  165 10kV Shaft power~
9 Ring cooling fan design wind pressure Pa 3600
10 Ring cooling fan design air volume Nm3/h  96000
11 Material layer thickness of ring cooler mm  1400
12 Hot air sintering    none
13 Temperature inside a hood 120
14 Temperature inside the second-stage fume hood 65

3. Case of 10-ton sinter cooler waste heat boiler in Hebei Iron and Steel Plant

Zongheng Steel is a relatively large-scale manufacturer of hot-rolled products and medium and wide-band steel in China. The company started the energy comprehensive utilization project of waste heat and waste gas power generation in the early stage, and has realized a virtuous cycle of environmental protection, energy comprehensive utilization and corporate benefit synchronous growth.
