8 Tons of Biomass (Burning Rice Bran) Chain Steam Furnace Cost

2023-08-28 08:27:39

 Rice bran is the part after rice husk and rice cleaning are removed in the process of rice making. The main substances are rice husk, rice husk debris and a small amount of rice flour, which are relatively cheap available by-products. In some areas where rice bran is relatively abundant, the use of biomass boilers to burn rice bran, which is rich in local resources, is a manifestation of resource reuse. The following introduces the cost of some 8 tons of biomass (burning rice bran) chain steam furnaces.

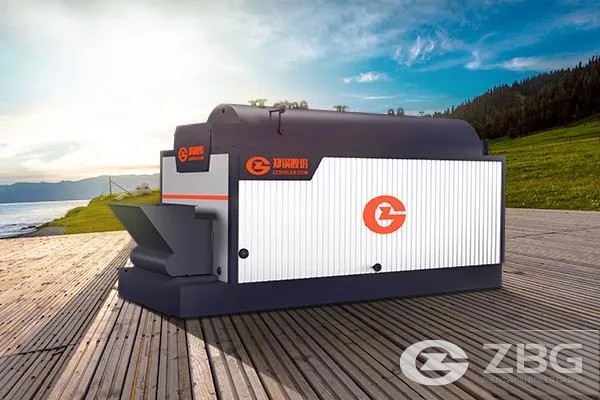

8 tons of biomass boiler

8 tons biomass boiler

1. 8 tons of biomass boiler cost

The cost of an 8-ton biomass fired boiler for burning rice bran has always been a concern of users. The total cost of an 8-ton biomass (rice bran-burning) chain steam boiler is about 350,000 to 800,000 yuan, including the price of the boiler body, auxiliary equipment configuration, and boiler installation. , Boiler transportation costs, etc.

2. 8 tons of biomass boiler model

Model Specifications Rated evaporation capacity (t/h) Rated steam pressure (MPa) Rated steam temperature (℃) Feed water temperature (℃) design fuel factory method
DZL8-1.25-T 8 1.25 194 20 Shaped
Biomass Granules
quick loading
DZL8-1.6-T 8 1.6 204 20 quick loading
SZL8-1.25-T 8 1.25 194 20 to assemble
SZL8-2.5-T 8 2.5 226 105 to assemble

3. Energy consumption of 8 tons biomass boiler

How much biomass fuel does the 8-ton biomass boiler produced by ZBG group burn rice bran in one hour? Due to factors such as purity and humidity, it is difficult to determine the fixed calorific value of rice bran fuel. Assuming that its calorific value is about 3600 kcal and the thermal efficiency of the boiler is 80%, the biomass fuel consumed by an 8-ton biomass boiler in one hour is about 1600kg. The higher the calorific value of the fuel, the higher the thermal efficiency of the boiler, the less energy it burns, and the more economical it is.
