Central heating 6 WNS7-1.25/115/70 fuel gas hot water boilers

WNS7-1.25/115/70 is a 10-ton hot water boiler, which is mainly used for large-scale central heating. The following are the technical parameters and supply scope of the 10-ton fuel-fired gas-fired hot water boiler.

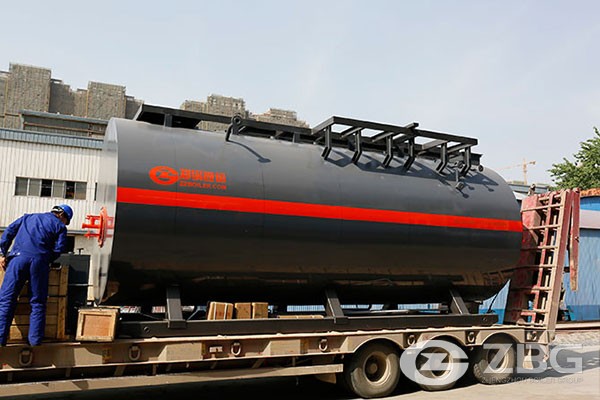

10-ton fuel-fired gas-fired hot water boiler

WNS7-1.25/115/70 technical requirements

1. Technical parameters:

Rated thermal power: 7MW, rated pressure: 1.25MPa, rated outlet water temperature: 115°C, rated return water temperature: 70°C; boiler thermal efficiency: ≥92%; (operating efficiency: when the boiler load is 40%-100%, it must not be less than 90 %).

2. Fuel type: oil and gas; the boiler should have high load adaptability.

3. Combustion method: micro positive pressure; Boiler structural features: horizontal internal combustion, three-pass, wet back type;

4. Boiler control mode: fully automatic PLC control mode (using Siemens, ABB or Schneider PLC), touch screen control and button manual control two control systems.

5. Ignition method: high-voltage electronic automatic ignition;

6. Adjustment method: automatic continuous adjustment of boiler load;

7. Exhaust gas temperature: <120°C

8. Environmental requirements:

• NOX emission concentration: <80mg/m3;
• Smoke emission concentration: <10mg/m3;
• SO2 emission concentration: <30mg/m3;
• Blackness of exhaust smoke:
• Noise requirement: ≤80db.

WNS7-1.25/115/70 supply scope and quantity:

1. 6 oil fired gas boiler bodies;

2. 7 sets of oil and gas combustion equipment (including burner, oil supply pump, oil filter, valve group connection, furnace safety device, etc.).

3. 6 sets of boiler body pipeline valves and instruments;

4. Each boiler steel chimney is 20m (diameter 800mm, not less than 6mm steel plate), a total of 6;

5. 6 energy savers;

6. 6 sets of boiler body control systems (the data interface is reserved for the control system, so as to be connected to the centralized control system of the entire boiler room).
