SZS Series Oil And Gas Fired Boiler

Type: Steam Boiler/Hot Water Boiler Capacity/Hot Power: 4 - 90ton /14 - 58MW Pressure: ≤1.6MPa Fuel: Natural Gas, Light Oil, Heavy Oil, Biogas, Blast Furnace Gas Application: Industrial Steam and Hot Water Supply

Overview

Brief Introduction:

SZS series oil and gas fired boiler is a packaged water tube boiler with double drums and D-type layout. It has lots of advantages such as sufficient burning, no pollution in the emission, convenient operation, easy installation etc. Besides, SZS series boilers have the features such as high thermal efficiency, high output, better load adaptability, and high automation level as well as safe and reliable operation. It is an ideal environmental protection product with high efficiency, low energy consumption and less pollution which will play an important role in the application field of thermal energy equipment in future.

Application:

SZS series oil & gas fired boiler is mainly used in centralized heating, industrial steam and hot water supply.

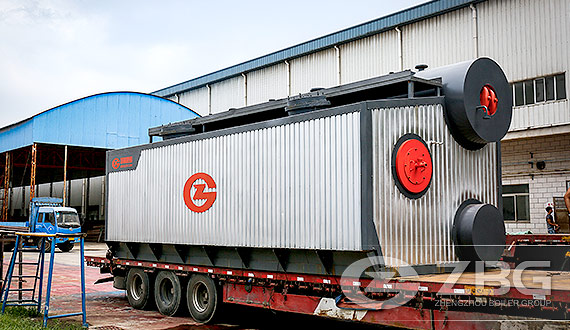

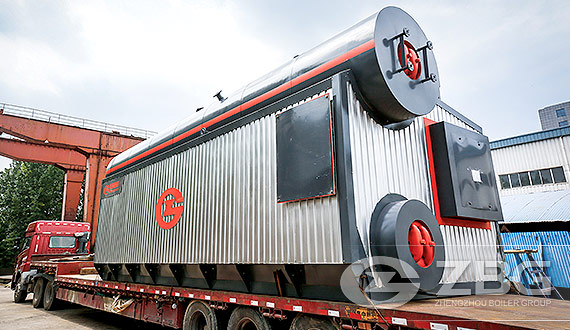

szs Water tube boilerclick to enlarge



Features:

  • D-type Double-Drum style with compact structure, less occupied area, good flame fullness which is better for low nitrogen combustion and low nitrogen emission.
  • With totally automatic burner and full set of safety protection device, thus automatic safety operation can be guaranteed.
  • Gas-tightness inner guard board with totally-enclosed welding structure which ensures a good sealing performance of the furnace wall.
  • The heat exchange surface area of the boiler and the space for water and steam are large enough to make sure the boiler parameters are stable.
  • The rear section of such boiler is equipped with flue gas condensing and recovery device which can effectively control exhaust gas temperature so that to improve boiler thermal efficiency.
  • Adopts high heat resistance material as adiabatic layer which brings a good thermal insulation property; the outer shell of the boiler adopts pressed guard board which makes the boiler looks delicate.
  • Adopts packaged structure; the whole boiler is fixed on the steel base with strong rigidity. Such structure provides convenience for installation and transportation.

Parameters

SZS series saturated steam boiler SZS series hot water boiler Unit Converters
Model SZS6 SZS10 SZS15 SZS20 SZS25 SZS30 SZS35
Rated Steam Capacity t/h 6 10 15 20 25 30 35
BHP 462 770 1155 1540 1925 2220 2690
Rated Steam Pressure
(bar)
12.5
Rated Steam Temperature
(℃)
194
Feeding Water Temperature
(℃)
104
Thermal Efficiency ≥ 95%
Exhaust Gas Temperature
(℃)
≤ 80
Fuel Type Natural gas, Light oil, (Heavy oil), (Blast furnace gas)
Shipping Weight (t) 26 37 34 38 45 52 58
Shipping Dimension (LxWxH) (mm) 5980x3035
x3320
7200x3280
x3307
9000x3280
x3307
9280x3600
x3618
10850x3640
x3930
10450x3890
x4210
12370x4280
x4210

Note: Here BHP means boiler horse power.

Model SZS17.5-1.6/130/70-Y、Q SZS58-1.6/130/70-Y、Q
Rated Thermal Power MW 17.5 58
BHP 1816 5916
Rated Outlet Water Pressure (bar) 16
Outlet Water Temperature (℃) 130
Return Water Temperature (℃) 70
Thermal Efficiency 94% 95%
Exhaust Gas Temperature (℃) 110 120
Fuel Type Natural gas, Light oil,
(Heavy oil), (Blast furnace gas)
Shipping Weight (t) 53 Bulk
Shipping Dimension (LxWxH) (mm) 10850x3640x3930 Bulk

Note: Here BHP means boiler horse power.
