Shl10-2.5/400 10 Tons Coal fired Biomass Dual-purpose Steam Boiler

 SHL10-2.5/400 is a coal-fired biomass dual-purpose steam boiler with a rated evaporation capacity of 10 steam tons, a pressure of 2.5MPa, and a rated steam temperature of 400°C. ZBG GroupSHL10-2.5/400 is a steam boiler from Xi'an Jiaotong University The latest combustion theoretical achievements and the latest development technology of the boiler have the advantages of high thermal efficiency, strong overload capacity, and sufficient output.

1. Boiler structure

The basic structure of SHL10-2.5/400-A consists of upper drum, lower drum, water wall, convection tube bundle, economizer, air preheater and other components. The combustion equipment adopts scale-type chain grate, and the ventilation structure is divided into warehouses, which is sensitive to adjustment. The combustion system operates stably, the coal type is highly adaptable, and with its own cyclone dust removal function, the blackness of the exhaust smoke and the original dust concentration of the boiler meet the environmental protection requirements.

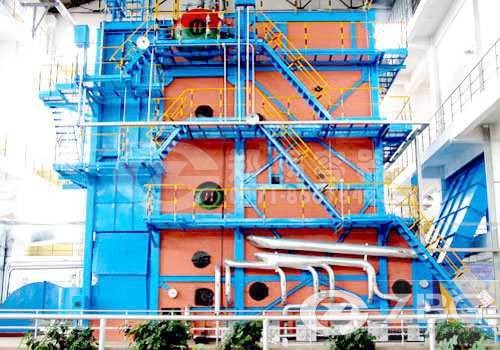

coal-fired biomass dual-purpose steam boiler

2. Technical parameters

• Furnace type: SHL10-2.5/400-A/T
• Fire grate: structural form of double-layer or single-layer arrangement
• Rated evaporation capacity: 10 steam tons
• Pressure: 2.5MPa
• Rated steam temperature: 400°C
• Feed water temperature: 105°C
• Design fuel: Class II bituminous coal
• Appearance method: bulk
• Thermal efficiency: 78%

Scope of application: power generation in thermal power plants, residential heating in winter, central heating
