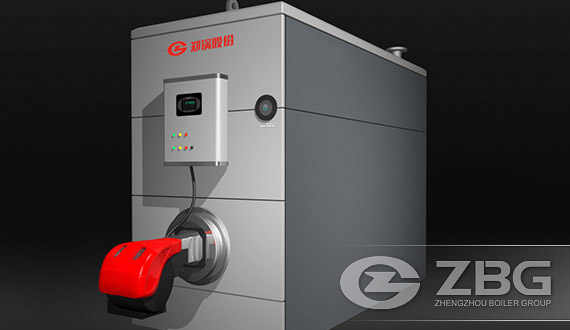

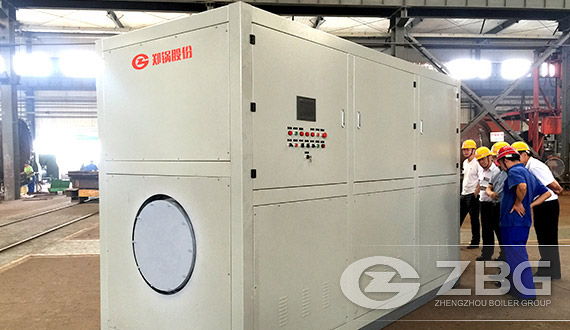

Vacuum Hot Water Heating Boiler

Type: Hot Water Boiler Capacity/Hot Power: 0.7 - 7MW Pressure: -0.02MPa Fuel: Natural Gas, Biogas, Light Oil Application: Central Heating, Hotel

Overview

Brief Introduction:

Vacuum hot water boiler is absolutely safe and is praised as the boiler without explosion forever because it operates in the negative pressure. During the operation process of the boiler, the hot media (water in boiler) doesn’t make any change; it only stays in the vacuum chamber and transfers heat between heat-exchanging tube and heat exchanger. The hot media in the furnace is completely deoxy purified water, so there is no corrosion and incrustation which makes boiler’s useful life can reach up to twenty years or even longer. Besides, it has easy installation, convenient maintenance and other features which meet the environmental requirements.vacuum hot water heating boilers

Application:

Vacuum hot water boiler is widely used for supplying water for central air conditioning, sanitary hot water, hot water processing etc.

Features:

  • The pressure of the medium circulation system is lower than the atmospheric pressure and the inner absolute pressures from 0.02 to 0.08MPa when the boiler in the operation condition, which keep the unit in the vacuum status, so that the boiler running safely without explosion.
  • There is no incrustation inside the boiler to increase boiler’s service life which is 1.5 to 2 times than ordinary boilers. The heat exchanger is made of stainless steel tube which is corrosion resistant with the lifetime more than 20 years.
  • Such series boiler adopts three pass structure and wet back reversal chamber structure. Besides, it uses high-quality aluminum silicate to preserve heat to make the heat loss of the machine fall down to limit value and the overall thermal efficiency up to 92%.
  • One boiler can be equipped with several heat exchangers for supplying hot water with different temperature and different application. For example, the water for central air conditioning, sanitary hot water, hot water processing etc.

Parameters

Vacuum Hot Water Heating Boiler Unit Converters
Model Water Volume
(L)
Rated Thermal Power Rated Outlet
Hot Water Pressure
(bar)
Outlet Hot
Water Temperature
(℃)
Return Water
Temperature
(℃)
Fuel Type Shipping Weight
(kg)
Shipping Dimension
(LxWxH)(mm)
MW BHP
ZWNS0.35-85/60-Y/Q 1340 0.35 36 -0.2 85 60 Natural gas Light oil 2335 3025x1360x1710
ZWNS0.48-85/60-Y/Q 2000 0.48 49 2640 3025x1360x1720
ZWNS0.6-85/60-Y/Q 2400 0.6 61 2932 3445x1470x1806
ZWNS0.7-85/60-Y/Q 2500 0.7 71 3529 3445x1470x1846
ZWNS1.05-85/60-Y/Q 3250 1.05 107 5104 4060x1580x1976
ZWNS1.4-85/60-Y/Q 3950 1.4 143 5597 4145x1830x2220
ZWNS1.75-85/60-Y/Q 4920 1.75 179 6182 4470x1780x2160
ZWNS2.1-85/60-Y/Q 5950 2.1 214 6947 4510x2000x2398
ZWNS2.8-85/60-Y/Q 7430 2.8 286 8578 5070x2100x2550
ZWNS3.5-85/60-Y/Q 9250 3.5 357 11245 5395x2300x2785
ZWNS4.2-85/60-Y、Q 10340 4.2 428 12061 6000x2300x2785
ZWNS5.6-85/60-Y/Q 12167 5.6 571 14960 6000x2666x3102
ZWNS7-85/60-Y/Q 13986 7 714 19940 6373x2840x3224
