An Amount of Flow 15 Ton Per Hour Superheated Steam Boiler

1- A boiler to get superheated steam with the following specification :

A- The temperature from 280-320 °C (dry steam).

B- The pressure from 15bar to 18bar.

C- An amount of flow 15 ton/h .

2- New Ejector System with 6 ejector and condensers

3- Changing the PLC operating system from 55 to 57 .

4- Supplying of New Oxygen Lance and Instrumentation for 02 Lance.

5- New Vaccum seal.

6- Flow and control valves and (flow & pressure) measures .

7- Water and steam pipeline with insulation.

8- Installation of Oxygen pipelines from the new 02 Unit to VD. 9- Nitrogen tank ( 12 Bar) 3,5 m3 •

10-Argon tank (35 Bar) 2m3 •

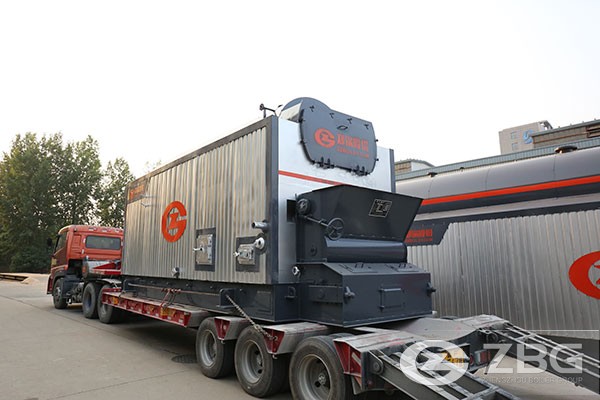

15 Ton Per Hour Superheated Steam Boiler

11-Supplying of enough desalinated water circuit for the capacity of the new boiler with new water circuit .

12-Pumps for cooling towers with capacity of at least 420 m3/h and an amount of water that is required for cooling 135 m3/h at least ,the temperature is no more than 28 °C and pressure ( 7 Bar) .

13-Control & Cooper Power Cables .

14- Amendment of the cooling towers ( heat exchanger) .

15-Direct thermometer .

16- Pumps, Valves and Hydraulic pipelines for the Plant
